Shoulder

Above ACJ to 4 cm below GHJ

Sagittals parallel to glenoid as per Image 1
Coronals perpendicular to sagittals

Elbow

6cm above to below radial tuberosity

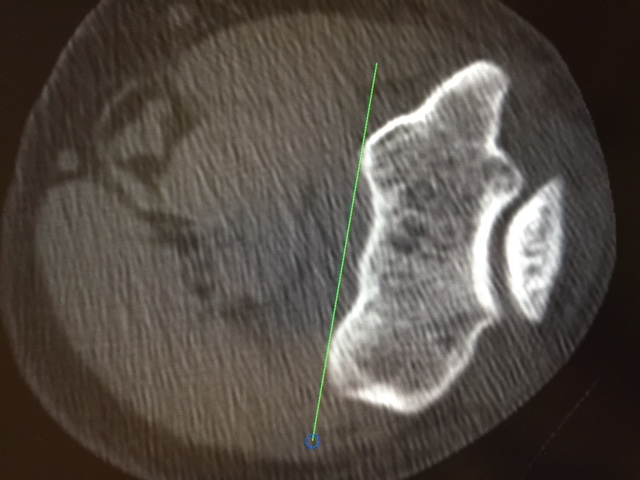

Coronals parallel to distal humerus as per Image 1

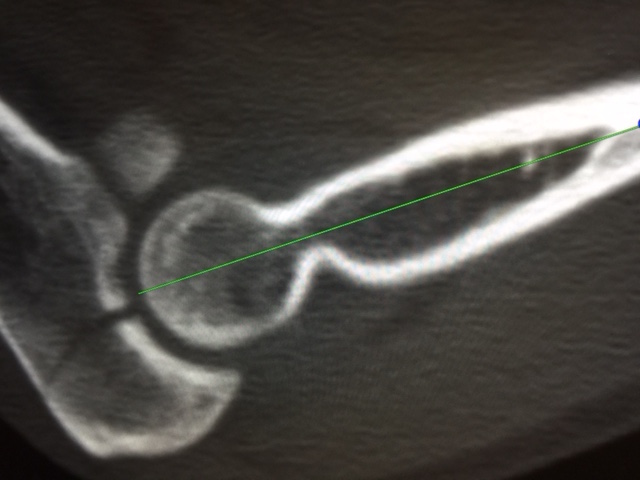

Coronals also parallel to humerus as per image 2
Sagittals perpendicular to humeral line in image 1 and parallel to humerus as in image 3

Wrist

4 cm proximal to MCPJ's

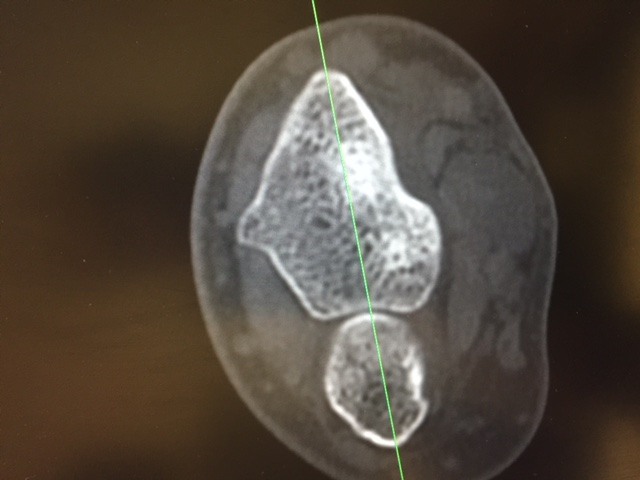

Coronals between epicondyles as in Image 1
Sagittals perpendicular to coronals

Scaphoid

1cm proximal to CMCj's

Note correct reconstruction planes

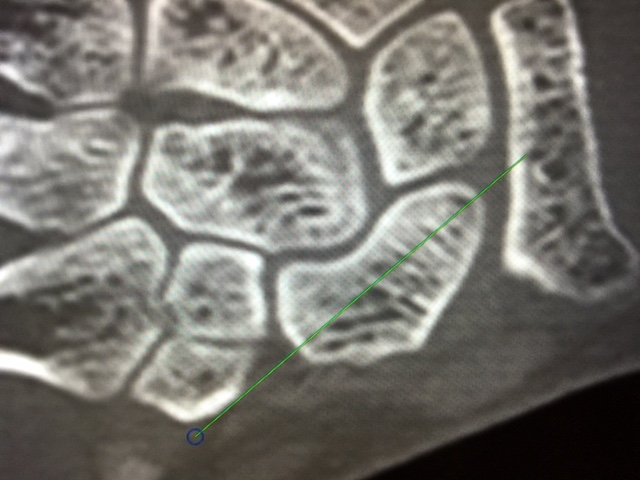

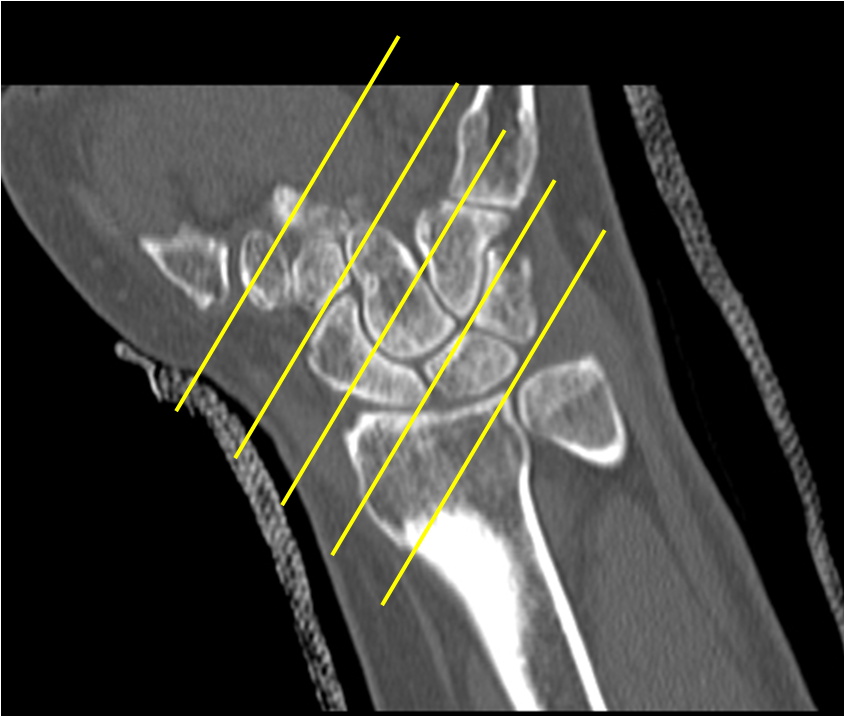

Set Scaphoid sagittals on coronal images then use resulting images to set scaphoid coronals and axials as in Image 2 and 3

Thumb

Include entire digit.
Note correct reconstruction planes are coronal and sagittal to the thumb not the other fingers

Finger

Coverage: Include entire digit.
Note correct reconstruction planes are coronal and sagittal to the finger involved
